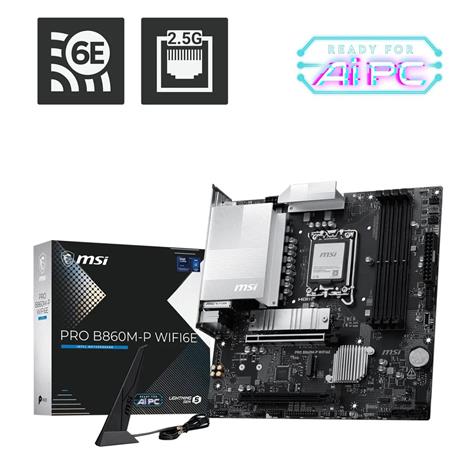

MSI PRO B860M-P WIFI6E/LGA 1851/DDR5/mATX

MSI PRO B860M-P WIFI6E

Chipset: INTEL B860
Rozměrový formát: mATX 243.84mmx243.84mm
Podpora pro procesory: Supports Intel® Core™ Ultra Processors (Series 2)
Patice procesoru: LGA 1851

Paměť:

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking:
1DPC 1R Max speed up to 8800+ MT/s
1DPC 2R Max speed up to 7200+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 5600+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Grafické porty:
1x HDMI

Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz
2x DisplayPort

Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz
1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Zvuková karta:

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Ethernet: Realtek 8125 2.5Gbps LAN
WLAN + Bluetooth: Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**, FIPS, FISMA
Rozšiřující sloty:
2x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný prostor:
2x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

USB:
Zadní USB

2x USB 2.0
3x USB 5Gbps Type A
Přední USB

4x USB 2.0
2x USB 5Gbps Type A
1x USB 5Gbps Type C
Interní porty:

Napájení

1× Power Connector (ATX_PWR)
1× Power Connector (CPU_PWR)
1× CPU Fan
1× Combo Fan (Pump_Sys Fan)
2× System Fan
USB

4× USB 2.0 ports
2× USB 5Gbps Type-A ports
1× USB 5Gbps Type-C port
Ostatní

2× Front Panel (JFP)
1× Chassis Intrusion (JCI)
1× Front Audio (JAUD)
1× Printer Port (JLPT)
1× COM Port (JCOM)
3× Addressable V2 RGB LED connectors (JARGB_V2)
1× RGB LED connector (JRGB)
1× TPM pin header (TPM 2.0)
Porty na zadním panelu:

DisplayPort
VGA
USB 2.0
USB 5Gbps Type-A
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
DisplayPort
Clear CMOS Button
USB 5Gbps Type-A
OS: Windows 11 64-bit
