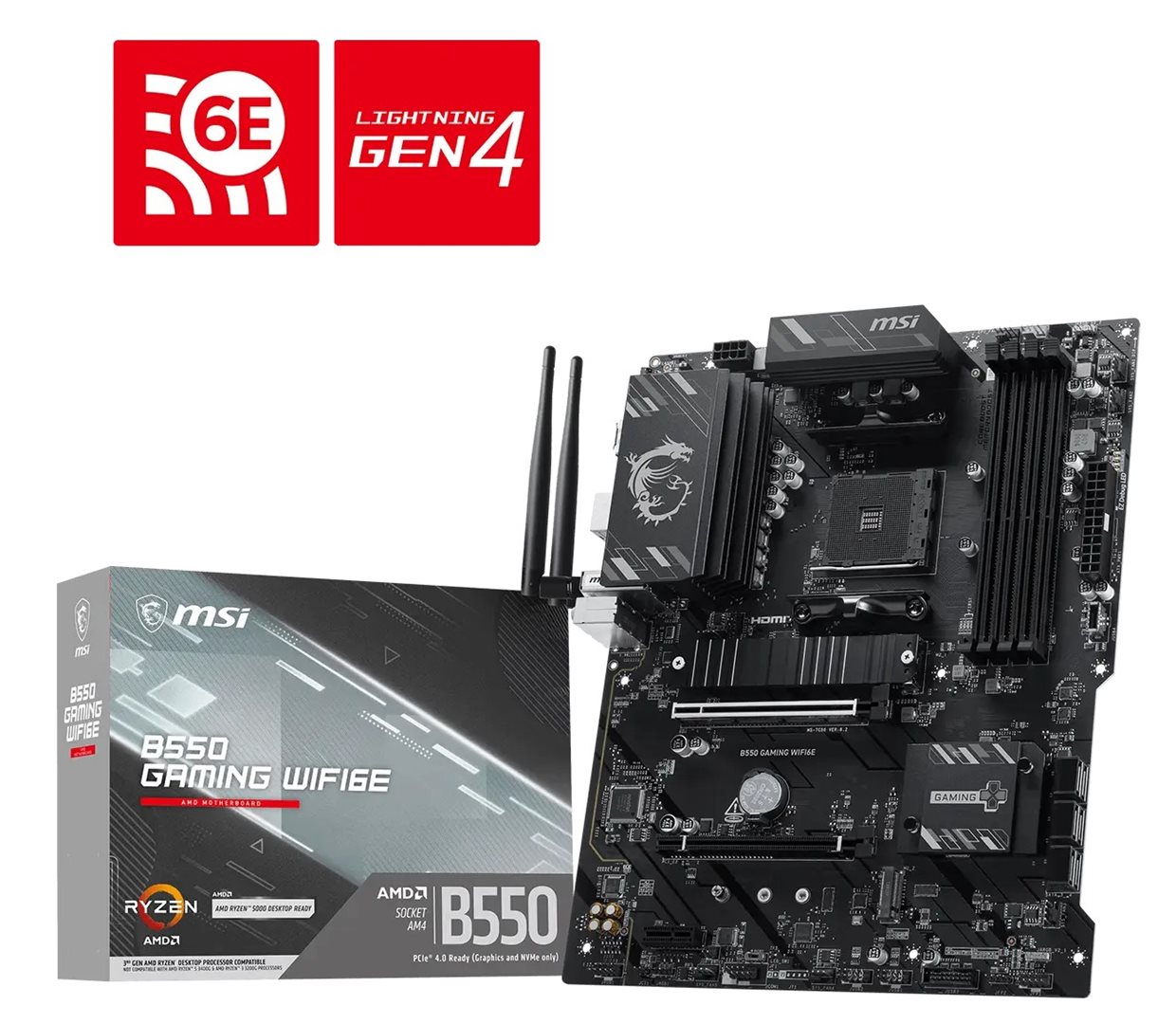

MSI B550 GAMING WIFI6E/AM4/DDR/ATX

MSI B550 GAMING WIFI6E

Chipset:  AMD B550
Rozměrový formát: ATX 243.84mmx304.8mm
Podpora pro procesory: AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Patice procesoru: AM4

Paměť:

4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
Max. overclocking frequency:
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 3866+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 3600+ MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Grafické porty:

1x HDMI

Support HDMI™ 1.4, maximum resolution of 4K 30Hz
1x DisplayPort

Support DisplayPort 1.2, maximum resolution of 4K 60Hz
Zvuková karta:

Realtek® ALC897
7.1-Channel High Definition Audio
Ethernet: Realtek® 8111H 1G LAN
WLAN + Bluetooth: Wi-Fi 6E Solution

The Wireless module is pre-installed in the M.2 (Key-E) slot
Dual-band 1T1R mode
Supports MU-MIMO RX
Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3
Rozšiřující sloty:

2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Úložný prostor:

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
6x SATA 6G

USB:
Zadní USB

4x USB 2.0
2x USB 5Gbps Type A
1x USB 10Gbps Type A
1x USB 10Gbps Type C
Přední USB

4x USB 2.0
2x USB 5Gbps Type A
1x USB 5Gbps Type C
Interní porty:

Napájení

1× Power Connector (ATX_PWR)
1× Power Connector (CPU_PWR)
1× CPU Fan
1× Combo Fan (Pump_Sys Fan)
6× System Fan
USB

4× USB 2.0 ports
2× USB 5Gbps Type-A ports
1× USB 5Gbps Type-C port
Ostatní

2× Front Panel (JFP)
1× Chassis Intrusion (JCI)
1× Front Audio (JAUD)
1× COM Port (JCOM)
2× Addressable V2 RGB LED connectors (JARGB_V2)
1× RGB LED connector (JRGB)
1× TPM pin header (TPM 2.0)
Porty na zadním panelu:

USB 2.0
DisplayPort 1.2
1G LAN
USB 10Gbps (Type-A)
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 2.0
USB 5Gbps (Type-A)
USB 10Gbps (Type-C)
OS: Windows 11 64-bit
