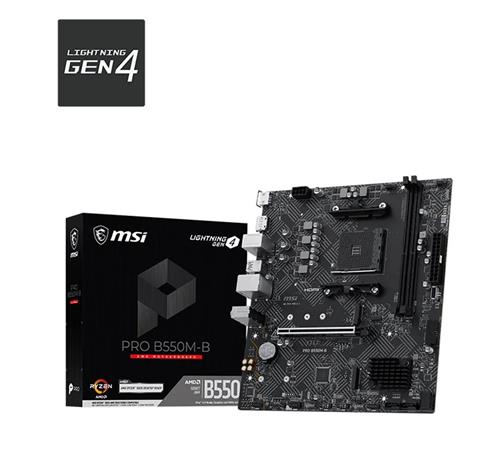

MSI PRO B550M-B/AM4/DDR4/mATX

MSI PRO B550M-B

Chipset: AMD B550
Rozměrový formát: mATX 220mmx243.84mm
Podpora pro procesory: AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
Patice procesoru: AM4

Paměť:

2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
Max. overclocking:
1DPC 1R Max speed up to 4600+ MT/s
1DPC 2R Max speed up to 3866+ MT/s
Supports JEDEC Speed
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Memory Overclocking by A-XMP OC mode
Grafické porty:

1x HDMI

Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x DisplayPort

Supports DP 1.2, maximum resolution of 4K 60Hz
Zvuková karta:

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Ethernet: Realtek® RTL8111H 1Gbps LAN

Rozšiřující sloty:
1x PCI-E x16 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný prostor:

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices
4x SATA 6G

USB:
Zadní USB

2x USB 2.0
4x USB 5Gbps Type A
Přední USB

4x USB 2.0
2x USB 5Gbps Type A
1x USB 5Gbps Type C
Interní porty:

Napájení

1× Power Connector (ATX_PWR)
1× Power Connector (CPU_PWR)
1× CPU Fan
1× System Fan
USB

4× USB 2.0 ports
2× USB 5Gbps Type-A ports
1× USB 5Gbps Type-C port
Ostatní

2× Front Panel (JFP)
1× Chassis Intrusion (JCI)
1× Front Audio (JAUD)
1× COM Port (JCOM)
3× Addressable V2 RGB LED connectors (JARGB_V2)
1× RGB LED connector (JRGB)
1× TPM pin header (TPM 2.0)
Porty na zadním panelu:

HDMI
DisplayPort
Keyboard / Mouse
USB 5Gbps Type-A
LAN Port
Audio connectors
USB 2.0
USB 5Gbps Type-A
OS: Windows 11 64-bit, Windows 10 64-bit
