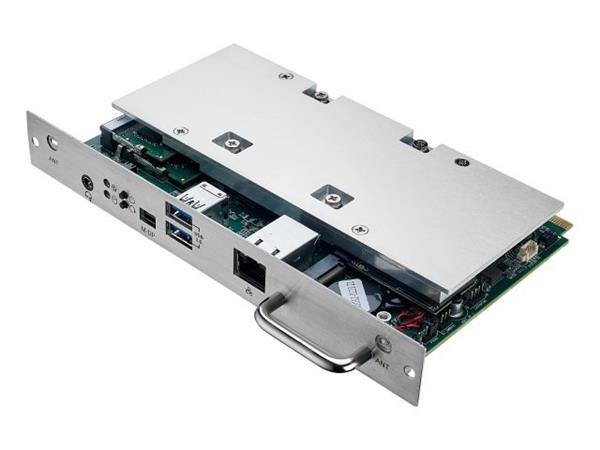

SDM Advanced (RPL-i5-d8/128/W11IoT B)
Format: SDM-L Slot-in PC; Processor: Intel Raptor Lake 13th gen. Core i5 1335U  12MB Cache; 10 cores with maximum 4.6GHz (2x Perform ance-core, 8x Efficient-cores); Intel  Iris  Xe Graphics eligible; 8GB dual channel RAM; 128GB SSD; W11IoT LTSC 2024; dTPM; Model: B ; [Interfaces: 1x DP; 2 x USB 3.1 gen.2; 1x Ethernet RJ45] Compatible with of SDM standalone adapter (100016152)




Benefits
High reliability – using Intel embedded chipsets provides a robust solution for 24/7 applications in the IoT and signage world.
Plug & Play with Sharp Large Format Displays – combine the SDM Essential module with a Sharp display for a 100% working solution, out of the box.
Long term support – with the latest Windows 11 IoT LTSC 2024, receive software servicing updates from Microsoft for 10 years.
Superb video playback – native media codec support of h.264/h.265/VP8/VP9 for smooth 4Kp60 playback.
High security – with integrated TPM2.0 capability using Intel® Platform Trust Technology (Intel® PTT).
Manageability – utilise the integrated watchdog to automatically restart applications.
Low noise – the highly efficient Elkhart Lake CPU results in low heat dissipation enabling the module to be cooled using passive heatsink.
