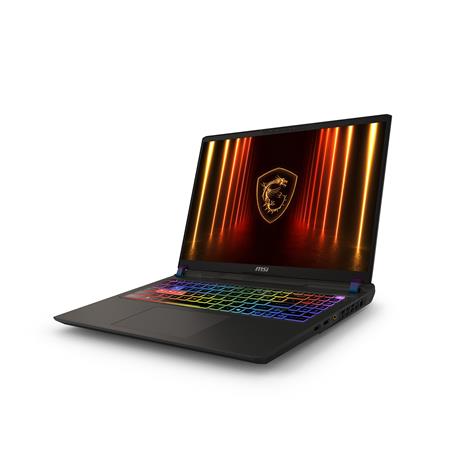

MSI Vector 16 HX AI A2XWHG-446XCZ/Core Ultra 9 275HX/32GB/1TB/RTX 5070 Ti, 12GB/16" QHD+240Hz/Bez OS

Part No 9S7-15M352-446
SKU Number
Website Name Vector 16 HX AI A2XWHG
Platform INTEL
Series Name Gaming
Segment Name Vector
Segment Name2
Segment Name3
Model 15M3
MKT Name Vector 16 HX AI A2XWHG
Entity MKT Name
MKT Spec Vector 16 HX AI A2XWHG-446XCZ
Chassis Color
Color ID5(GG)/Cosmos_Gray-Black-Cosmos_Gray-Cosmos_Gray
Color_Website Cosmos Gray
Chassis Material
A Side Metal
B Side Plastic
C Side Plastic
D Side Plastic
Display
Screen Size
Resolution
LCD Features ANTI-GLARE
Screen Touch Non-touch
Frame Rate 240Hz
Response Time G to G 3ms
Color Range 100% DCI-P3
Screen Size_Website 16"
Pixel_Website QHD+(2560x1600)
Frame Rate_Website 240Hz Refresh Rate
Color Range_Website 100% DCI-P3(Typical)
Display Type_Website IPS-Level
Peak Brightness (HDR Value) N/A
Touch Feature_Website NA
Typical Brightness 500 nits
Typical Brightness Remark N/A
CPU
CPU Type
CPU Core Name ARROW LAKE
CPU Number Core Ultra 9 275HX
CPU Basic Clock 2.7GHz
CPU Cores 24
NPU TOPS 13
CPU Core Name_Website N/A
CPU Number_Website Intel® Core™ Ultra 9 processor 275HX with Intel® AI Boost (NPU)
CPU Number_Website For GC Intel® Core™ Ultra 9 processor 275HX with Intel® AI Boost (NPU)
CPU Specification_Website 24 cores (8 P-cores + 16 E-cores), 24 thread, 40MB cache, Max Turbo Frequency 5.4 GHz
Chipset
Chipsets
Chipset SoC_Website Intel® HM870
Discrete Graphics
GPU1 Vendor
GPU1 MKT Name
GPU1 Number RTX 5070 Ti
GPU1 MKT Name_Website NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU powers advanced AI with 992 AI TOPS
GPU1 Boost Clock_Website "Up to 2220MHz Boost Clock 140W Maximum Graphics Power with Dynamic Boost.
*May vary by scenario"
GPU1 Remark_Website N/A
CPU and GPU Combined Power
Combined Power_Website Max. 205W CPU-GPU Power with MSI OverBoost Ultra Technology.
OverBoost Ultra Remark_Website N/A
Scenario Remark_Website NA
Cooling
Thermal Cooler Boost 5
Fan 2
Fan Technology N/A
Pipe 6
Vapor Chamber N/A
Video Memory
GPU1 VRAM Size 12GB
GPU1 VRAM Type GDDR7
Integrated Graphics
GPU1 Graphics_Website Intel® Graphics
Memory
Memory Size 16GB*2
Memory Module DDR5-5600
Memory(Slot) Max Speed Up to DDR5-6400
Memory Form NA
Memory Remark_Website *The actual frequency will vary by memory combination and CPU capability.
Memory Slot and Max Capacity
Memory Max Speed Up to DDR5-6400
Memory Slot 2 Slots
Memory Max Capacity_Website Max 96GB
Storage
SSD Form Factor M.2-2280 M-KEY
SSD Size 1TB*1
SSD Interface NVMe SSD PCIe Gen4
SSD 2 Size N/A
SSD 2 Interface N/A
HDD size
2.5" HDD_Website N/A
SSD Remark ”Please consult service center for upgrading SSD.”
Storage Slot
SSD (NVMe PCIe Gen)_Website 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible
HDD_Website NA
Max Storage Capacity 8TB
LAN
LAN_Website 2.5 Gigabit Ethernet
LAN REALTEK/RTL8125BG-CG
RJ45 1x
Wi-Fi/ Bluetooth
WLAN/BT_Website Intel® Wi-Fi 6E AX211, Bluetooth v5.3
WLAN Version
WLAN/BT INTEL/AX211.NGWG.NV
USB Ports
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3) NA
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) NA
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) NA
Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) NA
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging NA
Type-C (USB3.2 Gen2 / DisplayPort™) NA
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.0) NA
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.1) NA
Thunderbolt™ 4 (DisplayPort™) NA
Thunderbolt™ 5 (DisplayPort™/ Power Delivery 3.1) 2x
Thunderbolt™ (DisplayPort™/ Power Delivery 3.0) NA
Type-C (USB4® / DisplayPort™/ Power Delivery 3.0/ Thunderbolt™ 4 compatible) NA
Type-C (USB4® / DisplayPort™/ Power Delivery 3.1/ Thunderbolt™ 4 compatible) NA
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) NA
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.1) NA
Type-C (USB3.2 Gen1 / DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB3.1 Gen1 / DisplayPort™) NA
Type-C (USB3.2 Gen1 / DisplayPort™) NA
Type-C USB3.1 Gen2 NA
Type-C USB3.2 Gen2 NA
Type-C USB3.2 Gen2 with PD charging NA
Type-C USB3.1 Gen1 NA
Type-C USB3.2 Gen1 NA
Type-A USB3.1 Gen1 NA
Type-A USB3.2 Gen1 NA
Type-A USB3.1 Gen2 NA
Type-A USB3.2 Gen2 2x
Type-C USB3.2 Gen2x2 NA
Type-A USB2.0 NA
USB3.2 Gen 2 Type-C(connect to computer) NA
Card Reader
CardReader 1x SD Express
Smart Card Reader N/A
Video Ports
HDMI™ 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)
DisplayPort NA
Mini Display Port NA
Keyboard
Keyboard Types_Website 24-Zone RGB Gaming Keyboard with Copilot Key
Keyboard Keys 99KEYS
Key Travel 1.7
Keyboard Numeric Yes
Keyboard Color BLACK
Keyboard  Language CS Wleft Nokr
Touchpad
Touchpad Silky Smooth Touchpad
WebCam
WebCam IR FHD type (30fps@1080p) with HDR
Webcam Feature 3D Noise Reduction+ (3DNR+)
Audio Port
Audio Jack_Website 1x Mic-in/Headphone-out Combo Jack
Audio
Audio Speaker 2x 2W
Audio Woofer NA
Audio Mic Array Microphone
Audio Solution_Website "Nahimic 3 Audio Enhancer
Hi-Res Audio Ready"
AC Adapter
Adaptor 330W
Adaptor Input 90-264Vin
Adaptor Unit Weight (g) 1050
Power Cord Unit Weight (g) 195
Power Cord Type EU
Battery
Battery Type 4CELLS/4S1P
Battery Cell_Website 4-Cell
Whrs 90 Whrs
Mah 5845 Mah
Battery Unit Weight (g) 367.8
Battery Life
Operating Systems
OS N/A
OS Type
OS_Website Free Dos
Copilot+ PC Certified NA
Microsoft Office
OS-Office_Website N/A
Dimension (WXDXH)
Dimension 357 x 284 x 22.20-28.55 mm
Dimension(Inches)_Website 14.06" x 11.18" x 0.87-1.12"
Weight (W/ Battery)
Weight 2.7 kg
Weight(lbs)_Website 5.95 lbs
Security
Security Type_Website Firmware Trusted Platform Module(fTPM) 2.0, Webcam Shutter, Kensington Lock
Certification
Certification Type_Website Meta Ready
Sustainability
EPEAT_Website N/A
Sensor
Fingerprint
Fingerprint_Website NA
Fingerprint (Optional) NA
Ambient Light Sensor_Website NA
Gyroscope_Website NA
Accelerometer_Website NA
Magnetometer_Website NA
Proximity Sensor NA
NFC NA
Warranty
Warranty 24M
Warranty_Website 2 years limited warranty
Xbox Game Pass
Xbox Game Pass N/A
Xbox Game Pass Remark N/A
Accessory
Extra Bag N/A
Extra Mouse N/A
Remark
Remark 1_Website
Software
Software "Killer Control Center
Nvidia App
Nahimic 3
MSI App Player
Mystic Light
Crosshair
Battery Master
MSI Center
Discrete Graphics Mode
MSI AI Engine
AI Noise Cancellation Pro
Intel Application Optimization"
Model Info
Segment Name2 Vector16HXAIA
Segment Name Vector
Series Name Gaming
Segment Name3 Vector16HXAI A2XWHG
Extra Info
EOL Date
Barcode Info
UCC14
UPC
JAN
EAN 4711377356893
