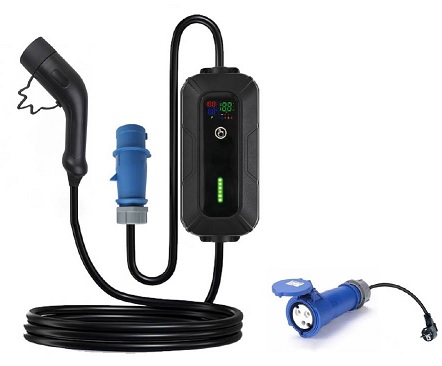

PLATINET přenosná nabíječka do automobilů, EV / PHEV AC TYPE 2 8 / 10 / 13 / 16 / 32A 7KW CEE 1F 32A, Plug & Play

Výrobce: Platinet

Kód: PLT00140

PartNumber: EV_PPC32AT7

PartNumber 2: 5907595461160

Váha: 3.5 kg

Obvyklá dodací lhůta: 30 (dny)

Záruční lhůta: 24 (měsíce)

Záruční lhůta EU: 24 (měsíce)

Celní zařazení: 85044060 … více informací

85044060 0.00 Statické měniče - nabíječe akumulátorů 21%
Přihlásit se

Vaše cena a stav skladu se zobrazí po přihlášení.

Obrázek produktu
Bezdrátová Ne
Bluetooth Ne
GPSR Platinet Polska;ul. Tadeusza Śliwiaka 48,PL 30-798,Kraków,Poland;biuro@platinet.pl
Podsvícení Ne
Lokalizace CZ česká
Plug & Play - operation is simpler than ever

Thanks to the Plug & Play function, charging is quick and easy - just connect the charging plug to the car, and charging will start automatically. Once charging is complete, simply disconnect the plug from the car.

The charger is designed to ensure safety and reliability during use. In addition, it is compatible with most electric cars on the market thanks to its universal design.

The 5-meter cable allows you to freely position the vehicle relative to the power source.

Type 2 to Schuko adapter

This is a great solution that helps you charge your car, motorcycle or other electric vehicle more effectively, even at home, without additional assembly or help from an installer. The cable has a Schuko plug on one side, and a TYPE-2 plug on the other, thanks to which connecting the adapter to your charger and the mains socket is extremely simple, both at home, in a public place, and when traveling. The total length of the cable is 30 cm.

Technical specifications
Standard European plug (blue CEE) 1 phase
Cable length: 5 meters
Rated input voltage: 85-230 V AC
Rated output voltage: 85-230 V AC
Rated current: default - adjustable 8A/10A/13A/16A
Rated power: up to 7.4 kW - 1st phase
Cable insulation resistance: >1000M? (DC500V)
Contact resistance: 0.5 m MAX
Housing fire class: UL94V-0
Wire harness size: 3*2.5mm2+2*0.5mm2
LED display showing temperature, charging time and actual current
Leakage protection
Overvoltage or low voltage protection
Overload protection
Lightning protection
Overheat protection
Sealing class: IP55
