Main specifications
CPU
Intel® Core™ i5-1235U Processor
Graphics
Intel® Iris® Xe Graphics
Memory
8 GB DDR4 (2 x 4 GB)
Storage
256 GB
Dimensions (W × H × D)
180 × 30 × 119 mm (7.09 × 1.18 × 4.69 in)
Box Size (L * W * H)
254 x 196 x 77 mm (10 x 7.72 x 3.03 inch)
Gross Weight
1.23 kg (2.71 lbs)

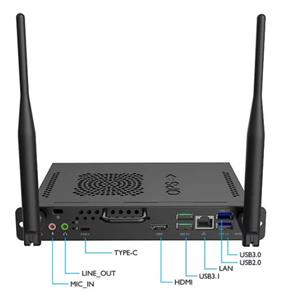

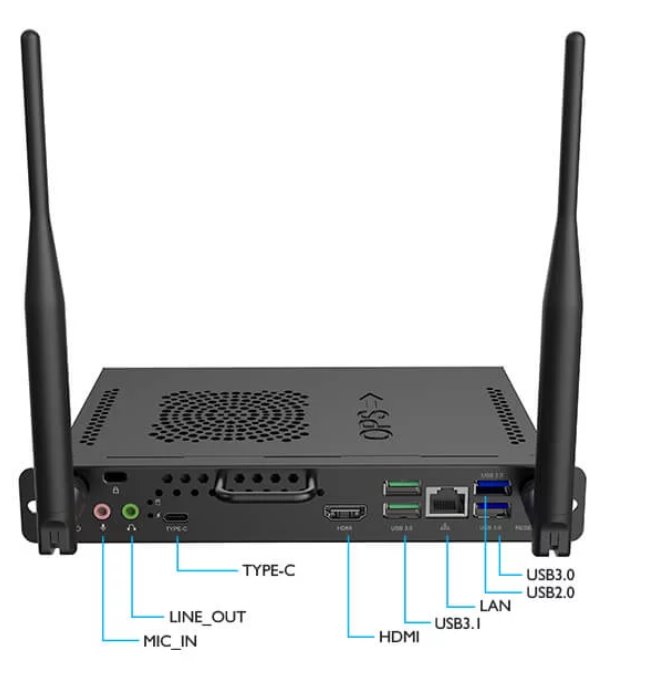

Connectivity
Output
HDMI 2.0 (4K UHD @ 60Hz, 3.5 mm audio
Input
3.5 mm audio
USB
USB 3.1 Type-C, 2 × USB 3.1, USB 3.0, USB 2.0
Ethernet
1GbE
Wireless
Wi-Fi 6, IEEE 802.11 a/n/ac/ax 5 GHz, IEEE 802.11 b/g/n/ax 2.4 GHz
Package content
Included

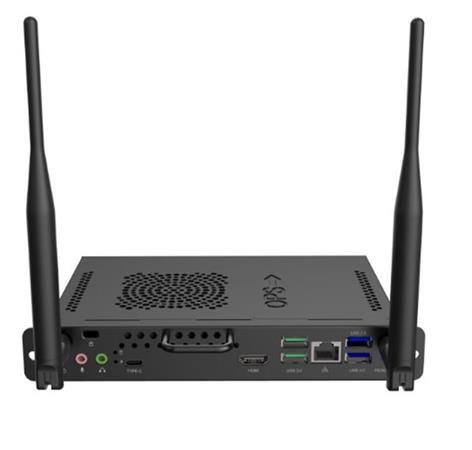

Intel OPS slot-in computer, 2 × Wi-Fi antennas
Compatibility
BenQ Boards
CP6501K, CP8601K, RP6503, RP7503, RP8603, RP6502, RP7502, RP8602 RP6501K, RP7501K, RP8601K RM6503, RM7503, RM8603 RM5502K, RM6502K, RM7502K, RM8602K RM5501K, RM6501K, RM7501K, RM8601K RM6502S, RM7502S, RM8602S RE6501, RE7501, RE8601, RE9801 IL4301, IL5501
Smart Displays
CS6501, CS7501, CS8601 ST4302, ST5502, ST6502, ST7502, ST8602 ST6502S, ST7502S, ST8602S
