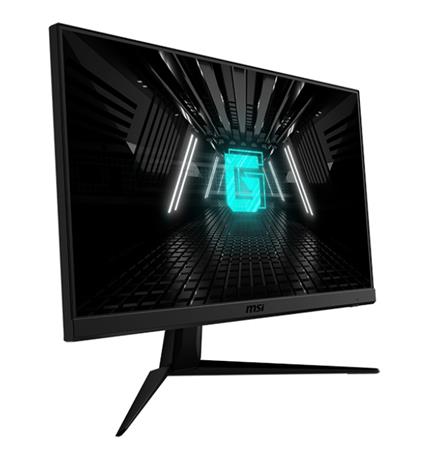

MSI Gaming monitor G2412F, 23,8" Rapid IPS/1920 x 1080 FHD/IPS/180Hz/1ms/DP/2xHDMI

MKT Spec G2412F
Website Name G2412F
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 23.8" (60cm)
Active Display Area (mm) 527.04(H) × 296.46(V)
Curvature Flat
Panel Type Rapid IPS
Resolution 1920x1080 (FHD)
Pixel pitch (mm) 0.2745(H)x0.2745(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~180Hz
HDR (High dynamic range) NA
SDR Brightness (nits) 300
HDR Brightness (Peak nits) NA
Contrast Ratio 1000:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency 66.4~208.7 KHz(H) / 48~180 Hz(V)
Refresh Rate 180Hz
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 1ms
Response Time (Tr + Tf) TBD
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 93%/79%
NTSC (CIE1931 area percentage/overlap) 74%/71%
sRGB (CIE1976 area percentage/overlap) 107%/96%
sRGB (CIE1931 area percentage/overlap) 105%/95%
Adobe RGB (CIE1976 area percentage/overlap) 91%/84%
Adobe RGB (CIE1931 area percentage/overlap) 78%74%
DCI-P3 (CIE1976 area percentage/overlap) 85%/83%
DCI-P3 (CIE1931 area percentage/overlap) 78%/77%
Rec.709 (CIE1976 area percentage/overlap) 107%/96%
Rec.709 (CIE1931 area percentage/overlap) 105%/95%
Rec.2020 (CIE1976 area percentage/overlap) 62%/62%
Rec.2020 (CIE1931 area percentage/overlap) 56%/56%
Quantum Dot NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 16.7M
Color bit 8 bits (6 bits + FRC)
Note_DP 1920 x 1080 (Up to 180Hz)
Note_HDMI 1920 x 1080 (Up to 180Hz)
Note_DVI N/A
I/O Ports
HDMI 2
HDMI version 2.0b
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.2a
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) NA
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type External Adaptor 20V 2.25A
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 18
Annual Energy Consumption (KWh) NA
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating E
Adapter's KC safety Number SU10469-15001
Power Cord Type C5
QC Output NA
QC Output Power NA
PD Output NA
PD Output Power NA
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) NA
Adjustment (Height) NA
Adjustment (Pivot) NA
VESA Mounting 100x100mm
Frameless Design Yes
Carton
Carton Item (SG14) SG14-M1S002A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 36
Q'ty/20cy (by air) pcs 360
Q'ty/40cy (by air) pcs 756
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1364
Net Weight (by air) kg 180
Gross Weight (by air) kg 201.24
pallet Q'ty (by sea) pcs 60
Q'ty/20cy (by sea) pcs 600
Q'ty/40cy (by sea) pcs 1260
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2188
Net Weight (by sea) kg 300
Gross Weight (by sea) kg 321.24
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 540 x 229 x 423
Product Dimension with Stand (WxDxH) (inch) 21.26 x 9.02 x 16.65
Product Dimension without Stand (WxDxH) (mm) 540 x 47 x 328
Product Dimension without Stand (WxDxH) (inch) 21.26 x 1.85 x 12.91
Stand Dimension (WxDxH) (mm) 476 x 229 x 268
Stand Dimension (WxDxH) (inch) 18.74 x 9.02 x 10.55
Weight (Net kg) 3.3
Weight (Net lbs) 7.28
Weight Without Stand (kg) 2.5
Weight Without Stand (lbs) 5.51
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 60 x 16.4 x 40.9
Inside Carton Dimension (WxDxH) (inch) 23.62 x 6.46 x 16.1
Outer Carton Dimension (WxDxH) (cm) 61.5 x 17.9 x 43.4
Outer Carton Dimension (WxDxH) (inch) 24.21 x 7.05 x 17.09
Weight (Gross kg) 5.
Weight (Gross lbs) 11.02
Accessories
DisplayPort Cable 0
HDMI Cable 1
DVI Cable 0
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 1
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 0
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name Gaming
Segment Name AG
Segment Name2 G2412
Segment Name3 G2412F
Barcode Info
EAN 4711377133074
